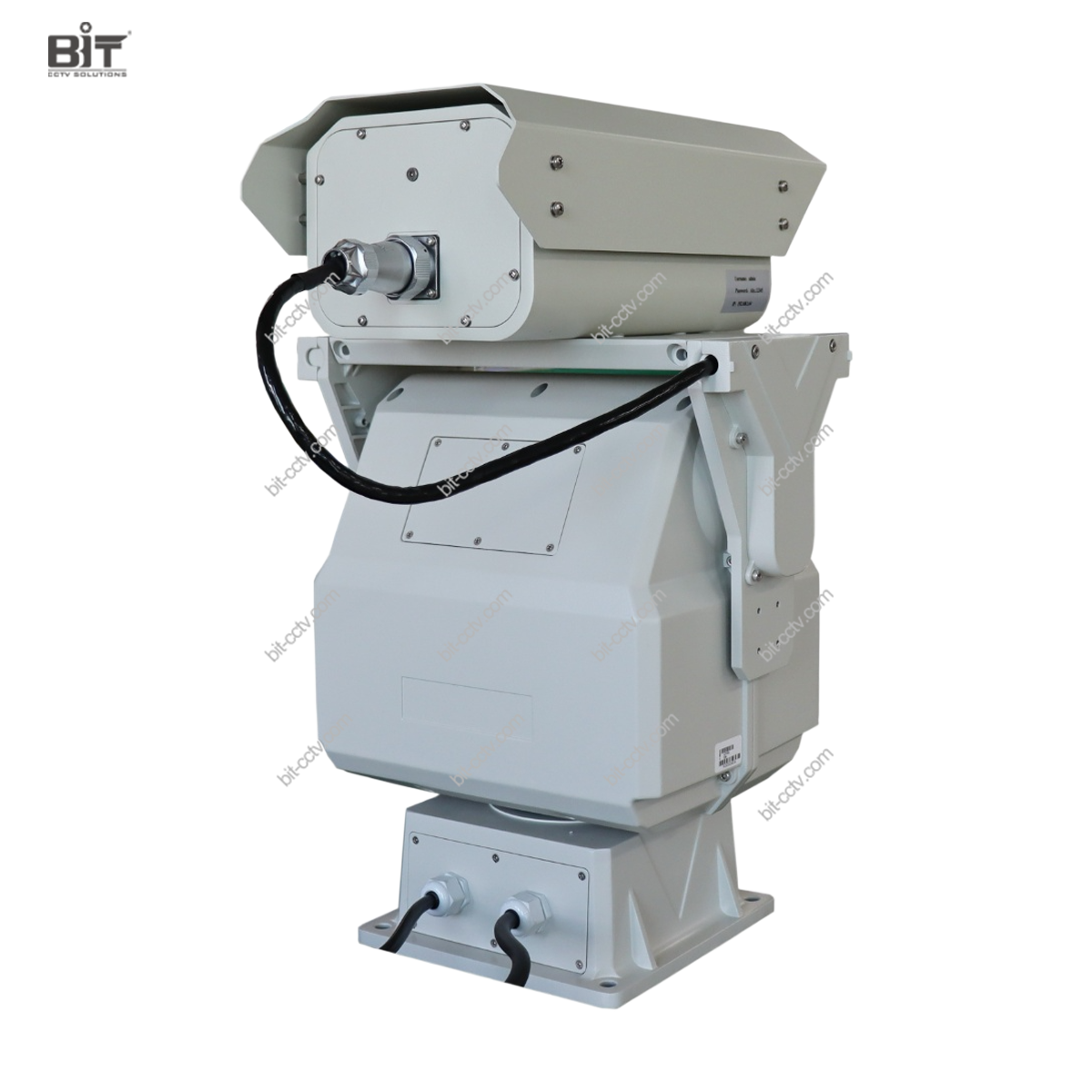

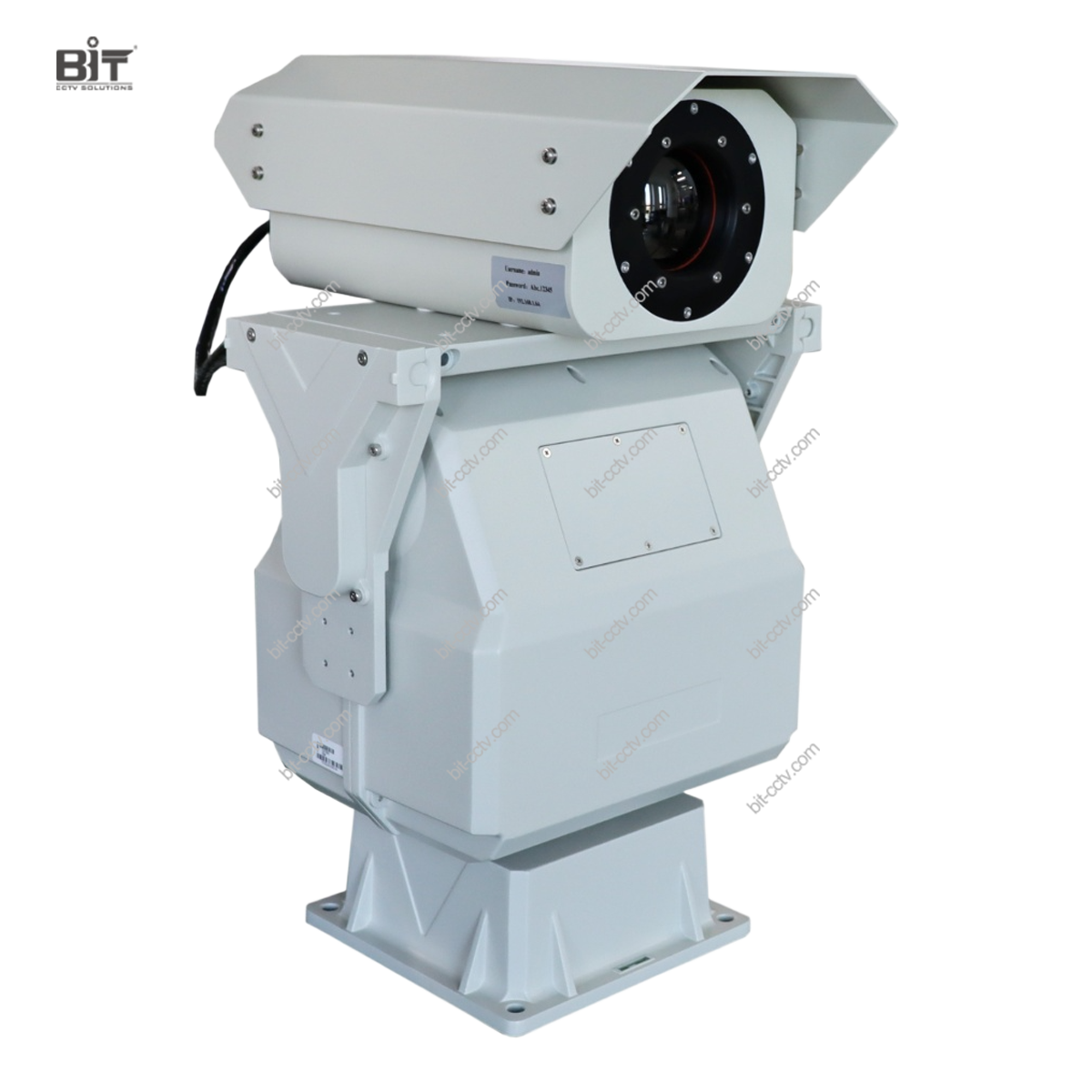

กล้องถ่ายภาพความร้อนระยะไกล

Detection

Vehicle: 6,500m/Human: 2,500m

Recognition

Vehicle: 1,800m/Human: 700m

Sensor

5th generation UFPA sensor

Resolution

384*288 pixel ( 640*512 optional)

Spectral

7.5～14μm

NETD

50mK（@25℃ F1.0）

Focal length

25～75mm

FOV(H)

13°～4.3°

IFOV

0.22～0.68mrad

Lens control

Motorized zoom and auto focus

Network Protocol

ONVIF2.4 compliant

TCP/IP, UDP, IPv4/v6;

Support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP

Support PSIA

Image processing

1.  Stable operational temperature without TEC, starting time less than 4 seconds

2.  SDE digital image processing

3.  10 pseudo color and B/W, B/W inverse

4.  AGC

5.  2X digital zoom

Housing

1. Material：High strength die-cast aluminum alloy, waterproof seal, avoid the growth of mold and moisture

2. Structure：Integrated single-window design

3. Surface coating：PTA three-resistance coating, seawater corrosion resistance

4. Interface：Aviation waterproof connector

Pan Tilt

1. Rotation: Pan: continuous 360°, tilt: -75°~+40°

2. Rotation speed: Pan: 0.1°/s-60°/s , tilt: 0.1°/s-30°/s

3. Positioning accuracy: 0.1°

4. Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan

5. Support coordinate query/feedback and absolute control

Interface

1. RJ45.10, 10/100 Base-T adaptive

2. AC24V/DC24V ±10%, self-adaptive

3.  Optional RS-485 (PELCO D/P protocol)

4.  Waterproof connector

Environment

1. Operating temperature：-40℃～+65℃

2. Storage temperature：-40℃～+65℃

3. Humidity：<90%

4. Ingress protection：IP66
