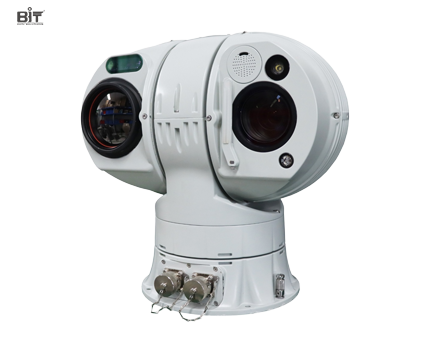

กล้องถ่ายภาพความละเอียดสูงระยะไกลที่มองเห็นแสงและความร้อน

Detection

Vehicle: 8,600m/Human: 2,100m

Identification

Vehicle: 1,800m/Human: 900m

Thermal sensor

VOx uncooled detector,384*288 (640*512 optional)

7.5um-14um spectral response, 50mk NETD

Thermal lens

21mm～105mm, 5X zoom

Motorized zoom and auto focus

Fov（H）

18°～3.4°

Image processing

2X digital zoom; AGC; 10 pseudo color; SDE image enhancement

Visible sensor

1/1.8'' CMOS

0.0002 lux super high sensitive color to B/W

2.1MP ,1920X1080

Automatic ICR switch

H.265/H.264/MPEG4/MIPEG

32Kbps~16Mbps, 60Hz,30 FPS

Visible lens

18mm～528mm, 30X zoom

105mm super aperture

motorized zoom

DC8-12V

auto aperture

zoom data feedback

Fog Penetration

Support

Housing

1. Material:High strength aluminum alloy housing, waterproof seal, avoid the growth of mold and moisture

2.  Structure: Integrated double-window design

3.  Surface coating: PTA three-resistance coating, corrosion resistance

4. Built-in thermostat, design of thermal equilibrium

5.  Interface:Aviation waterproof connector

Pan Tilt

Pan: 360° continuous rotation，tilt: +45°～-45°

Rotation speed: Pan: 0.01°～30°/S, Tilt: 0.01°～15°/S

Positioning accuracy: 0.1°

Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan

Support coordinate query/feedback, angle real-time display and absolute control, zero position correction

Interface

1*RJ45, 10M/100M adaptive Ethernet port (include thermal+HD visible+RS485)

1* AC24V/DC24V

Video format

H.264/H.265, Dual video output

Protocol

TCP/IP、HTTP、DHCP、DNS、DDNS、RTP etc.

Support ONVIF2.4

Pelco-P、Pelco-D,Baudrate 2400、4800、9600、19200 optional

Power supply

AC24V/DC24V±10%, 50Hz, 150W, Standard AC220V->AC24V power supply

Environment

1. Operating temperature:-40℃～+65℃

2. Storage temperature:-40℃～+65℃

3. Humidity:<90%

4. Anti-lighting: built-in auto fuse-protected device, power 4000V, signal 2000V

5. Ingress protection: IP66

Weight

≤30kg
